Pro-Filer Wilson Intake Manifold Small Black Chev Single Plane SBC 4150 Carby

Brand: Pro-Filer Performance Products

Product Type: Intake Manifold - Carburetted

Product Line: Pro-Filer / Wilson Small Black Chevy Intake

Engine Family: Chevrolet Small Block V8 - SBC

Clyinder Head Type: SBC 23 Degree

Carburettor Quantity: One

Mounting Flange: 4150 Square Bore

Intake Style: Single Plane

Basic Operating RPM Range: 3,500-8,500rpm

Material: Aluminum (Aerospace Specification, Aluminum Alloy, Primary Virgin Ingot)

Colour: Natural

Manifold Height: 6.150" China Rail to Carb Flange

Engine Block Deck Height: Standard Deck

Condition: Brand New In Box

Quantity: Sold Individually

Product Description

The Ultimate in SBC Conventional Port Intakes

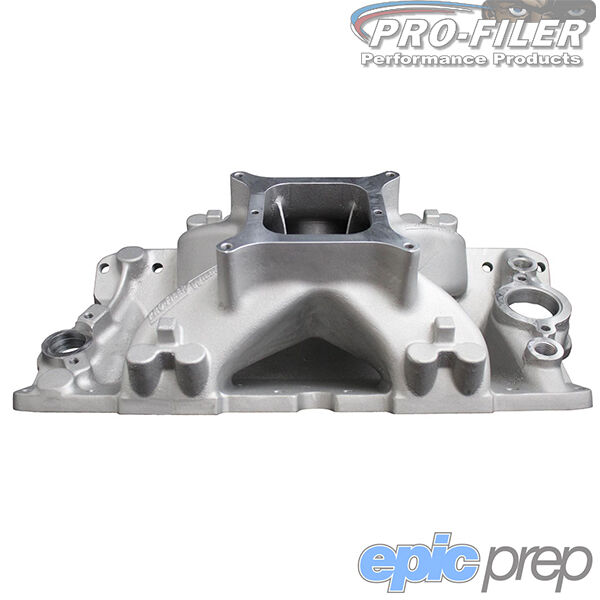

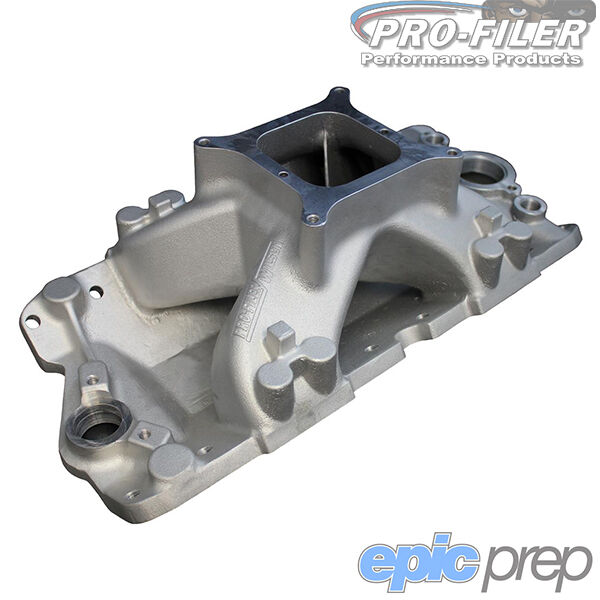

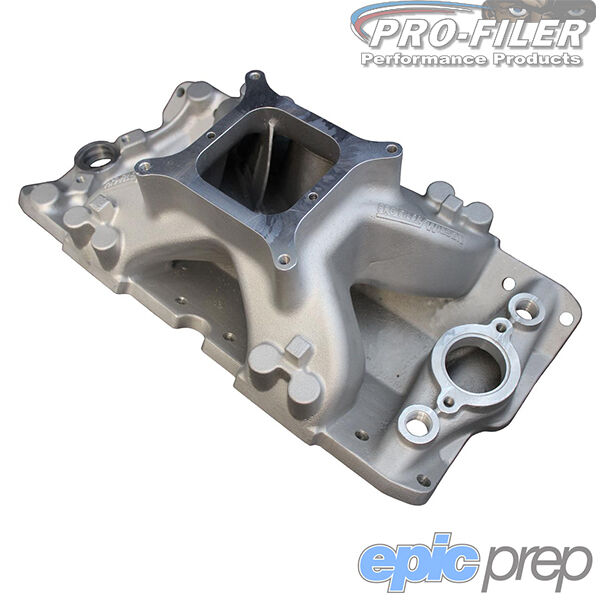

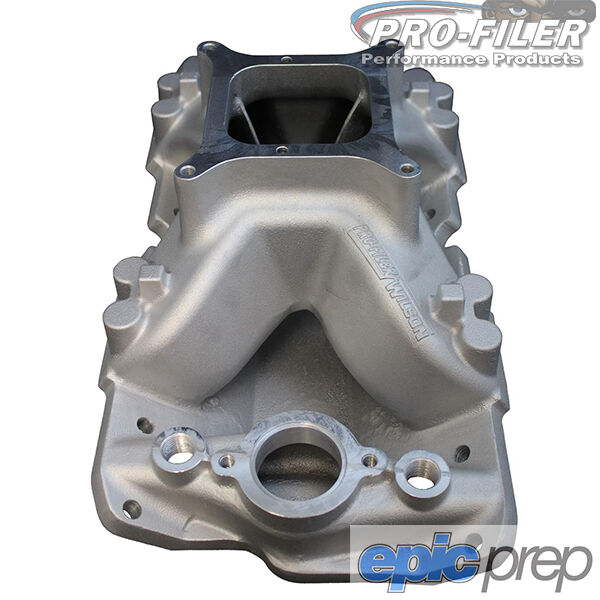

Pro-Filer Performance Products has collaborated with Wilson Manifolds to produce the latest SBC 23 degree intake manifold. This single plane intake manifold has demonstrated a 25 hp increase over the competition in independent dyno testing. It features a 4150 carb flange and fuel injection bosses cast into the manifold—and has been port matched to the Fel-Pro 1206 gasket. Order the model recommended for your year/make and engine application.

• Standard SBC Port Location
• Cast Fuel Injection Bosses
• Optimized Cross Sectional Area
• Runners are Precision Cast
• 4 Corner Water Bosses
• Fits majority of SBC Stock Port Cylinder Heads - Regardless of Valve Angle
• Standard SBC Port and Location. For maximum performance you need to perform finish work for a smooth transistion to head port opening.
• Aerospace Specification, Aluminum Alloy (Primary Virgin Ingot)
• For Stock Deck Height

Brand Description

Pro-Filer Performance Products makes state-of-the-art performance parts for both race cars and street machines. Epic Prep offers a variety of high-performance Pro-Filer heads, intake manifolds, and valve covers for both Ford and Chevy applications—precision-engineered parts designed to deliver more power and better performance to your ride. Proudly Made in the USA under the highest quality standards.
